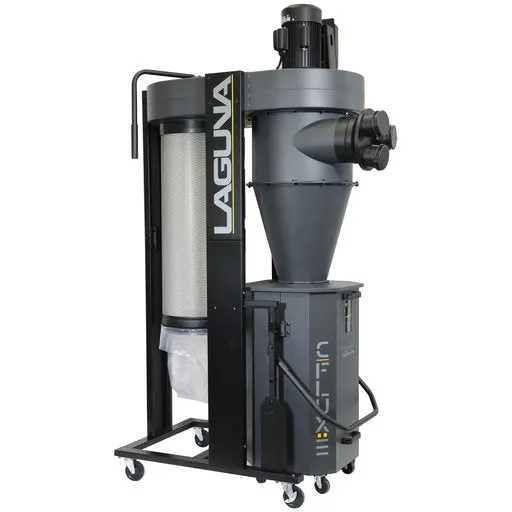

Laguna has updated its line-up of C|Flux & P|Flux cyclones, and launched the all-new X|Flux 5 dust collector!

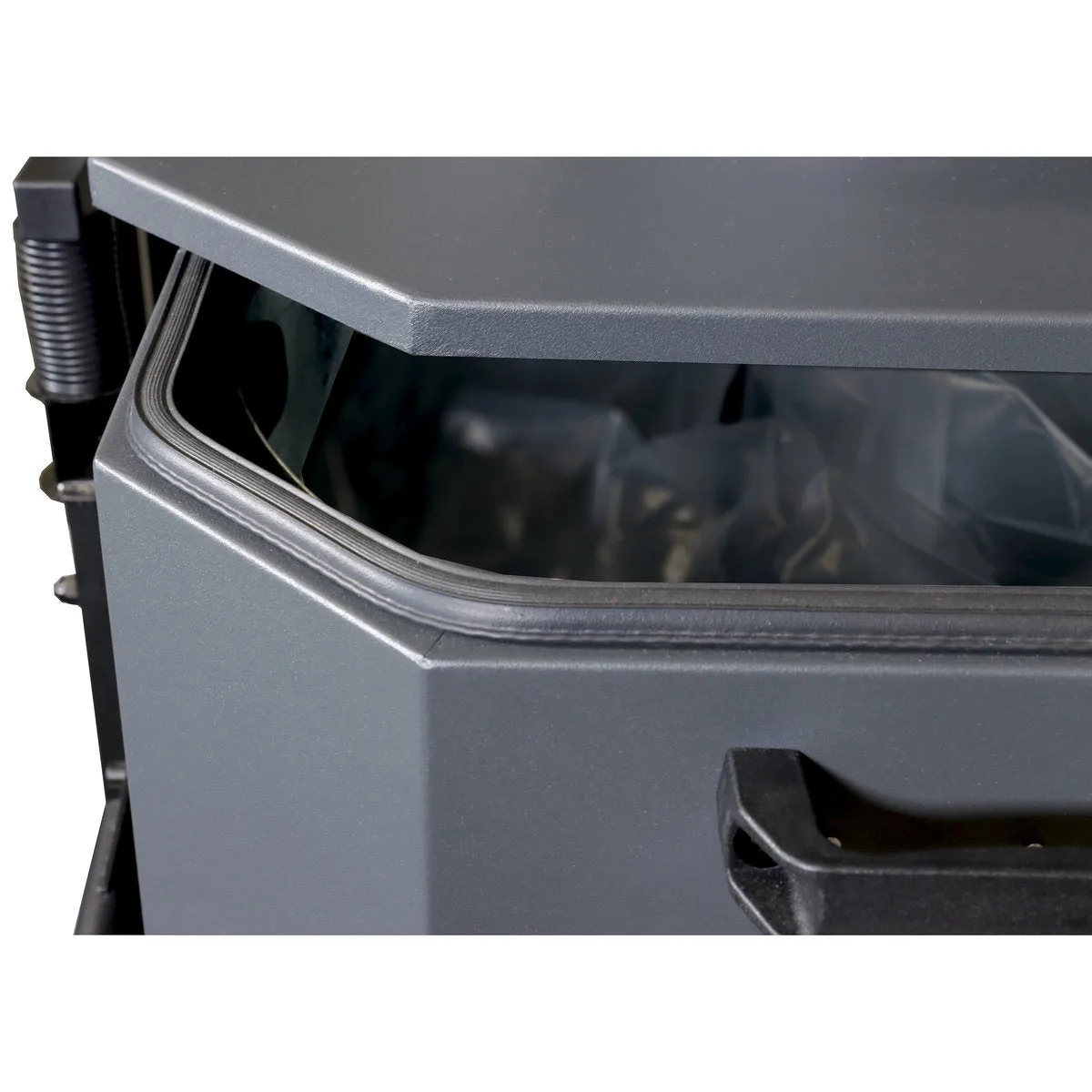

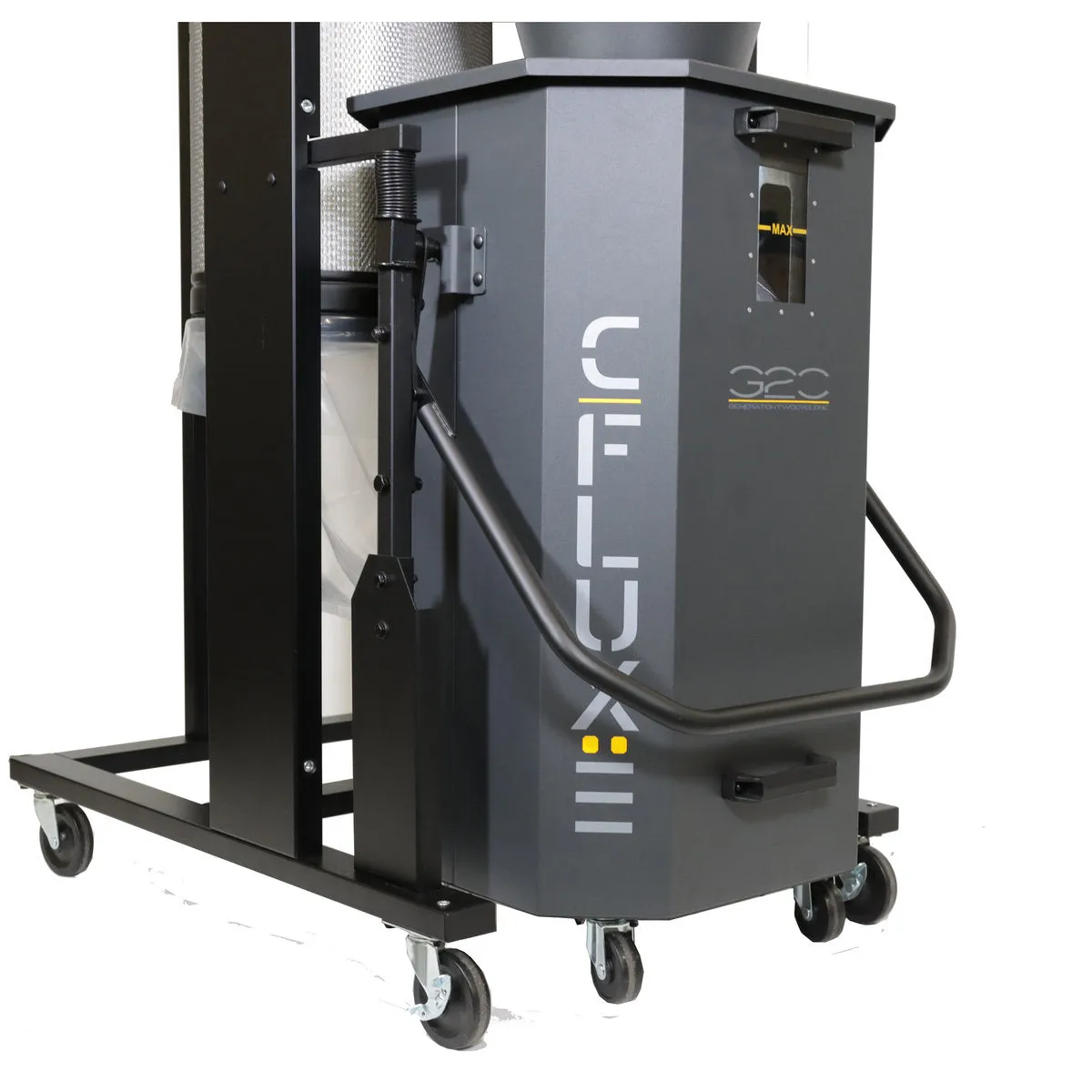

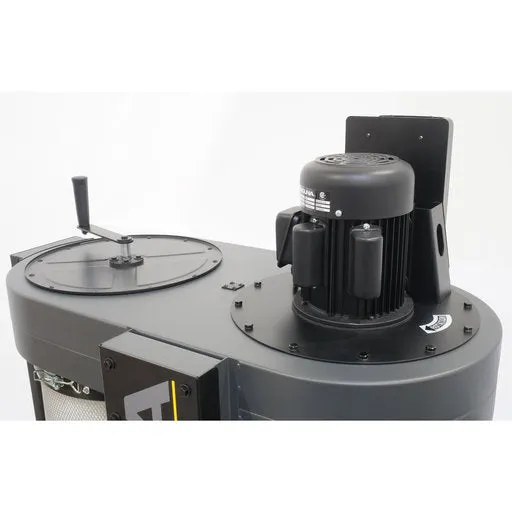

For the popular C|Flux cyclone dust collectors, we’ve kept the user-friendly aspects of the previous generation while adding smart new features to improve the user experience. Among the upgrades is a dual-paddle filter cleaning design, and a max level indicator to increase filter longevity. The iconic octagonal drum grows to an impressive 46-gallon capacity on the C|Flux 2 and 3 models, and the newly redesigned 3-piece drum construction requires far fewer joints and fasteners cutting assembly time, while the locking casters provide additional stability.
- Motor Specs: 3HP
- Electrical Specs: 220V / 60Hz / 1PH / 3450 RPM
- Running AMP: (8″ Inlet) 22A at 220V
- Air Volume: 1624CFM (Cubic Feet Per Minute)
- Max Static Pressure: 11.2″
- Fan Size: 15.5″
- Inlet: 8″ (8″ x 4″ X 3 Ports)

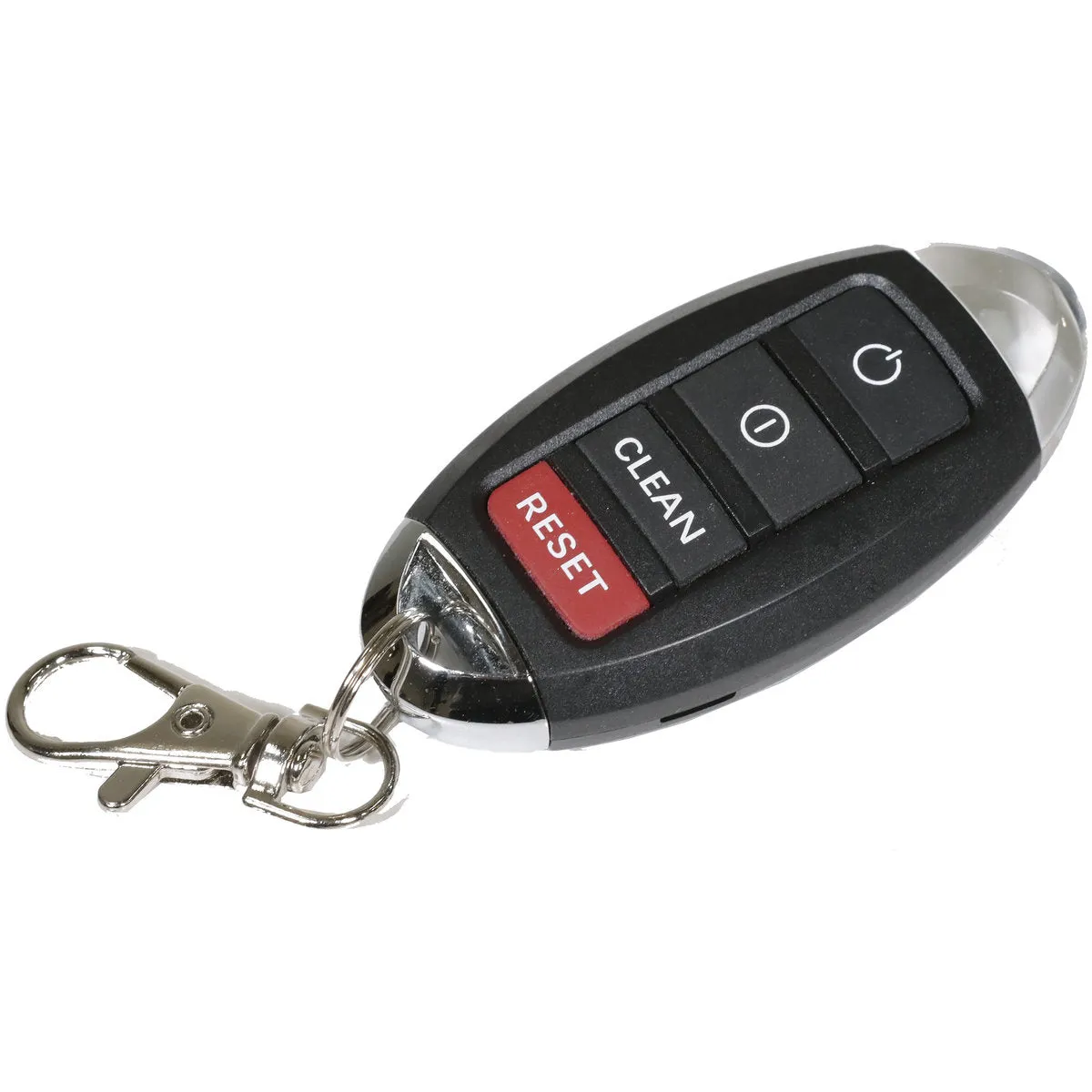

- Remote Control: High Frequency
- Collection Capacity: 46 Gallon Octagon Drum
- Decibel Reading: 88 dB (@9.8ft)
- Assembled Dimensions (L x W x H): 48″ x 28″ x 88″
- Packing Size (L x W x H): 50″ x 31.5″ x 50.6″ (127 x 80 x 128.5 cm)
- Machine Weight: 373 lbs. (169 kg)
- Shipping Weight: 441 lbs. (200 kg)
Filter Specs
- Filtering Area: 102 sq/ft (9.5 sq/m)
- Cartridge Filter: 1 Micron, 15.74″ x 35.43″ (40 x 90 cm) x 1pc
